LCR80

• Sealed 3-Way Flexible Placement
• 75 to 300 Watts Power Rating

The LCR80 speaker projects an extremely wide sound-stage for a greater listening experience from a variety of seating positions, delivering an amazingly full-sounding performance for a speaker of such compact dimensions.

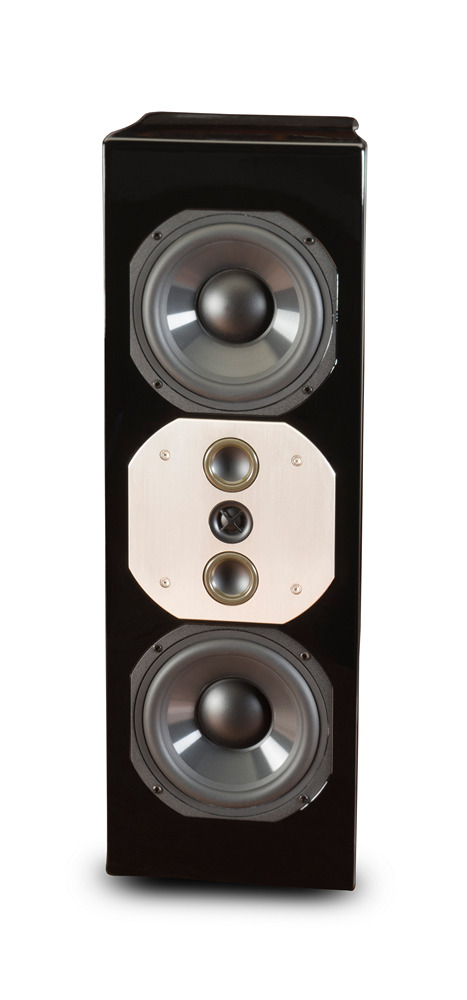

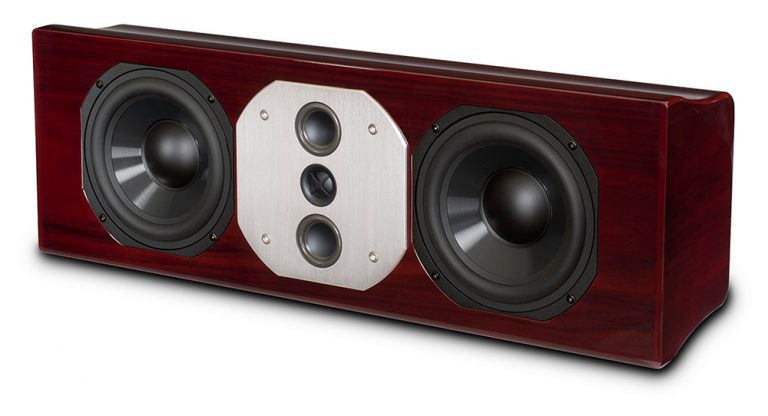

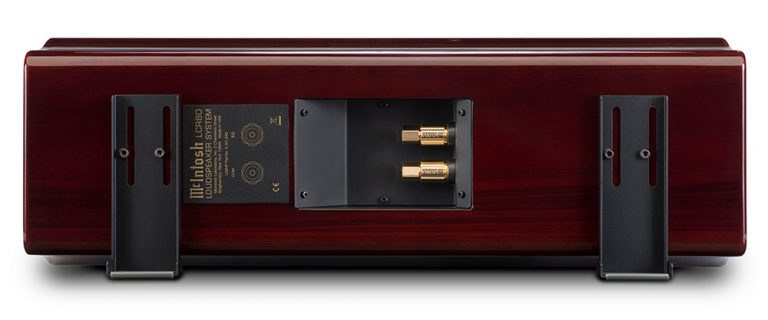

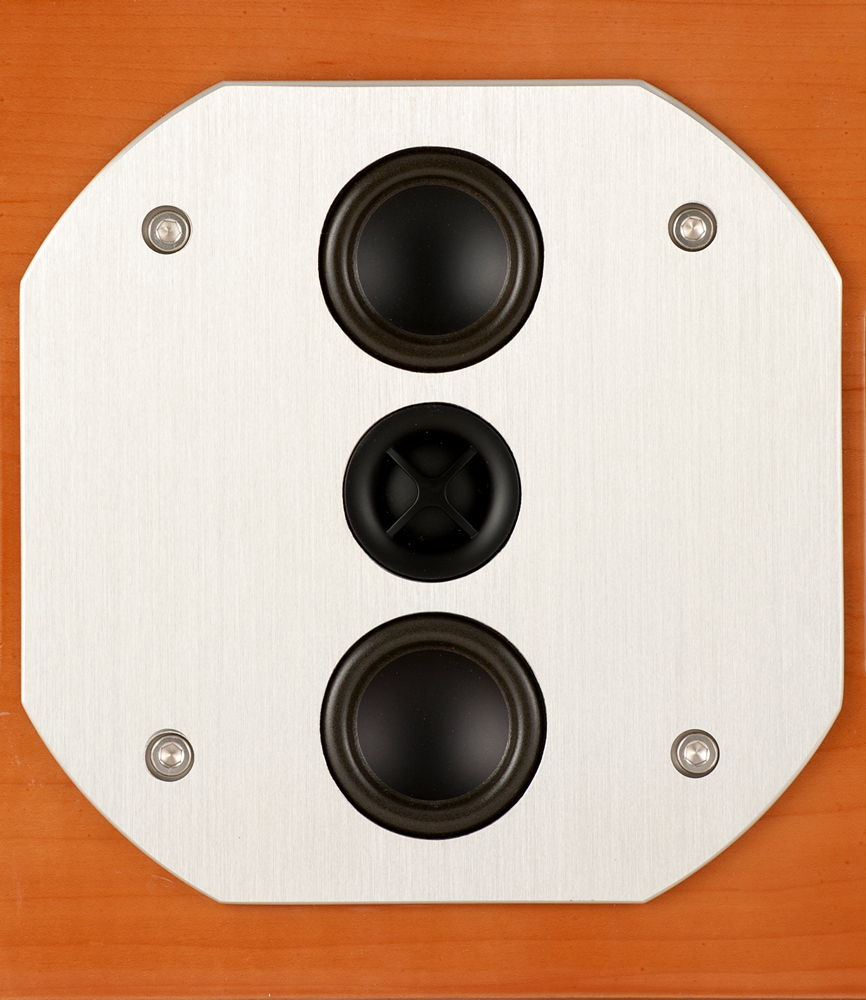

With its flexible design, it can be placed in horizontal, vertical or shelf mounted orientations. Complete mounting hardware is supplied for all positions. The machined alloy, high-frequency array is rotatable to optimize the sound for either vertical or horizontal placement without sonic compromise. McIntosh patented Low Distortion/High Performance (LD/HP^®) woofers are combined with two midranges and a dedicated tweeter to deliver lifelike sound. Voiced to match the XR50 and XR100 speakers, the LCR80 may be used for the left, center or right channels in home theater systems or in special stereo applications.

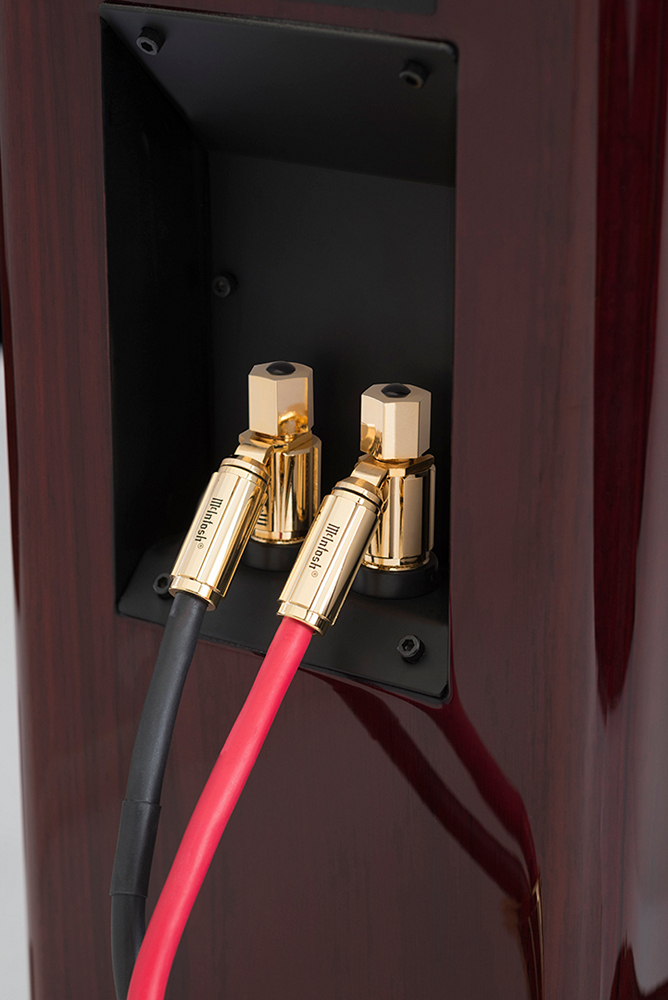

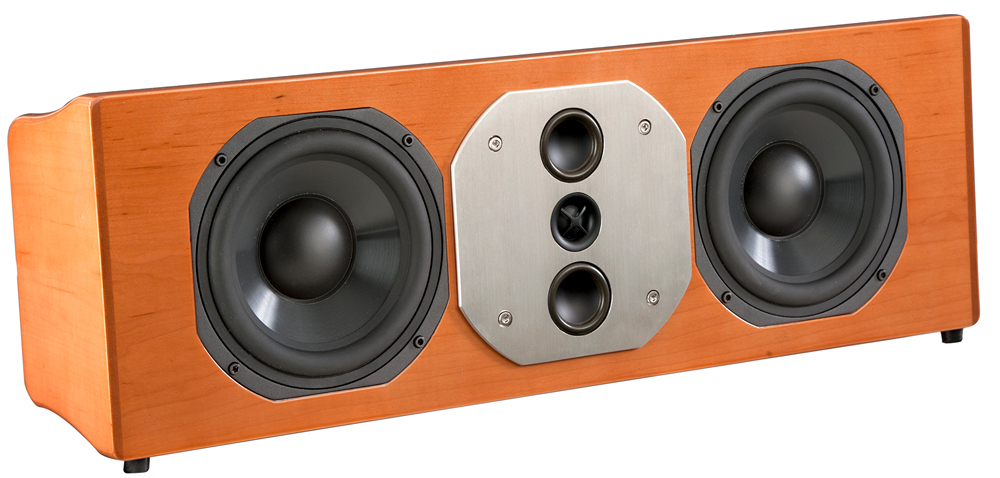

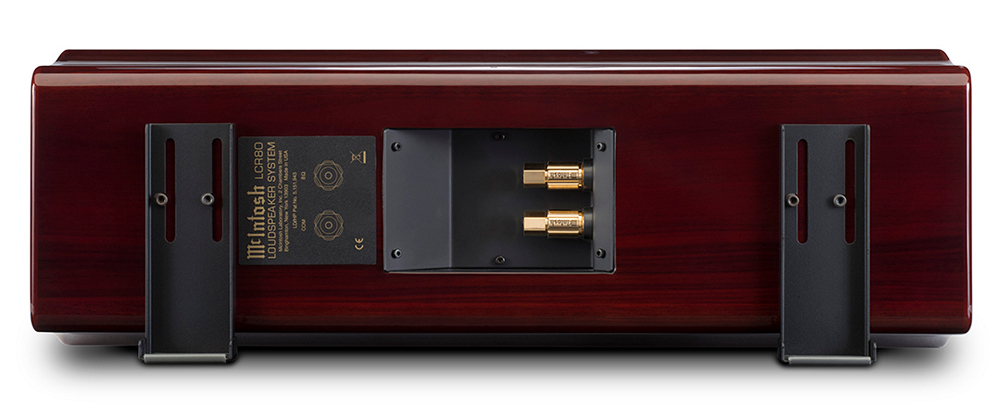

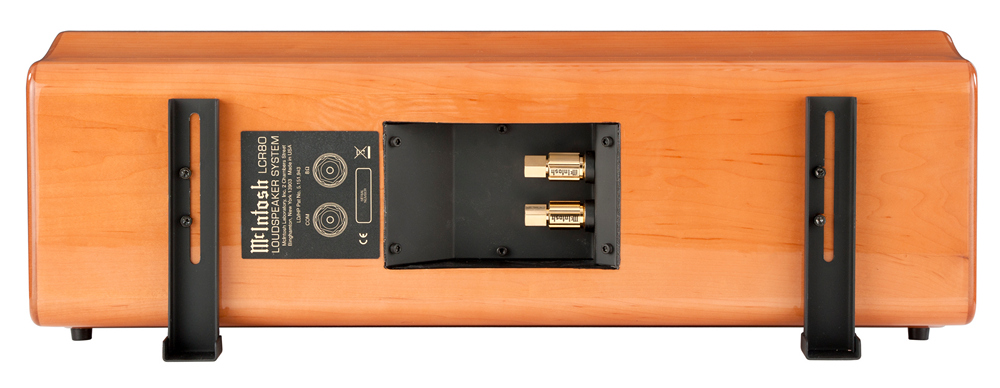

Patented McIntosh Solid Cinch™ speaker binding posts allow for a simple yet secure connection to your speaker cables, helping to ensure the best possible audio performance. Fine gloss wood finishes are offered in Black, Pear Maple and Red Walnut. Amplifiers from 75 to 300 Watts are appropriate power for LCR80.

ELECTRONIC SPECIFICATIONS

• Impedance Nominal

  8 Ohms

• Power Rating

  75 to 300 Watts

• Frequency Response

  80Hz to 45kHz

• Sound Pressure Level, 2.8V/1m

  81dB

• Crossover

  500Hz, 8kHz

DRIVER SPECIFICATIONS

• Number of Woofers

  2

• Woofer Size

  6"

• Woofer Type

  Cast Frame, LD/HP^®, Poly Cone

• Number of Midranges

  2

• Midrange Size

  2"

• Midrange Type

  Inverted Titanium Dome

• Number of Tweeters

  1

• Tweeter Size

  3/4"

• Tweeter Type

  Titanium Dome

GENERAL SPECIFICATIONS

• System Type

  Sealed 3-Way Flexible Placement

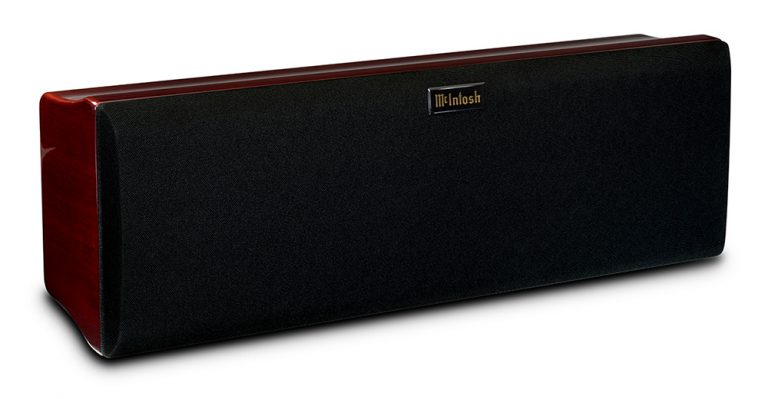

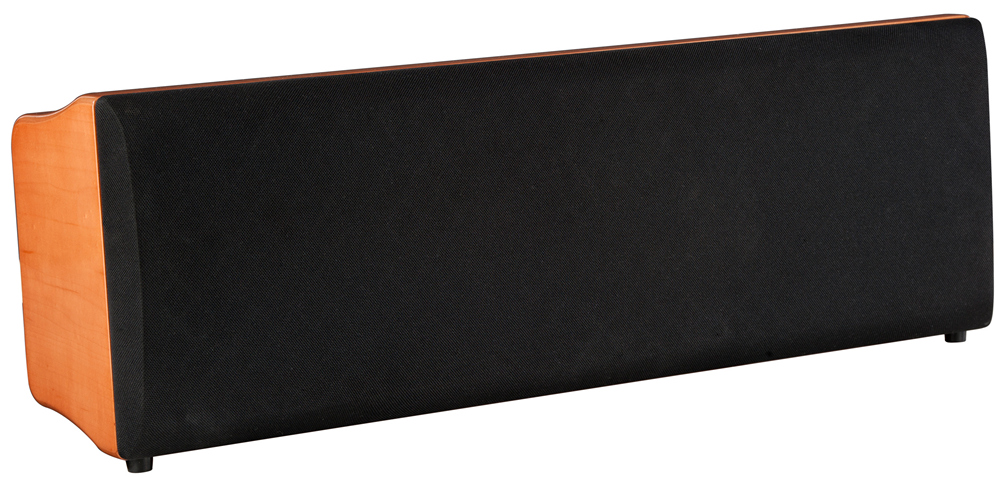

• Grille

  Black knit cloth, magnetically attached

• Available Finishes

  Red Walnut, Black, Pear Maple

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  24" (61cm) x 8" (20.3cm) x 8-3/8" (21.3cm) (including angled wall mounting brackets)

• Unit Weight

  24 lbs (10.9 kg)

• Shipping Weight

  30 lbs (13.6 kg)
