MAXIMA AMATOR
מידע נוסף
| מותג | Sonus Faber |
|---|
PASSION, KNOWLEDGE, TRADITION
MAXIMA AMATOR
Look back to see ahead

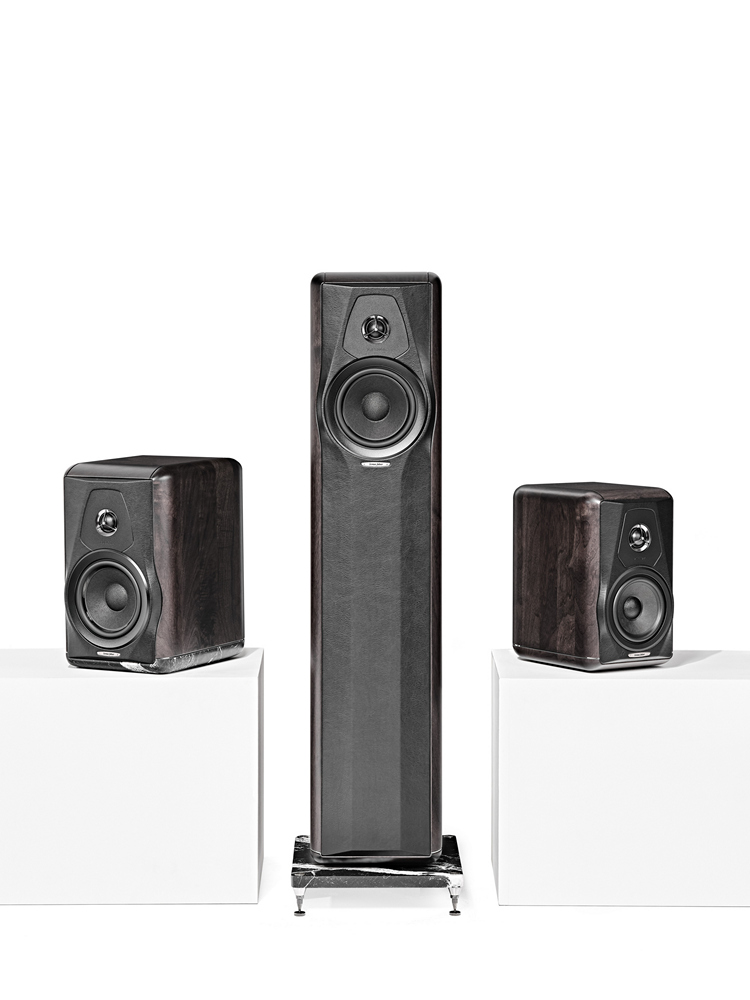

As the third member of the Heritage family, we pay homage to our Italian roots
and to our artisans as well as the people who are responsible for developing Sonus faber products.
Completely Made in Italy, Maxima Amator is a project started many years ago and abandoned because considered impossible.
Today, we achieve that dream: a two-way floor stander concept applied to a solid wood cabinet.
THE TWO-WAY DESIGN FOR SONUS FABER
The two-way design has been a strong piece of brand identity for Sonus faber products. In general, hi-fi enthusiasts deem the two-way loudspeaker system as one of the purest systems achievable. For this reason, the Maxima Amator was a fun project for us, serving as the glorification of successfully merging two speakers to achieve a unique emotion with the maximum representation of the "Voice of Sonus faber” – a goal to achieve natural sound.
HEART AND BRAIN
The solid wood is a living material that continuously changes over time. Due to this, the Maxima Amator’s large cabinet had to be meticulously studied and fine-tuned to avoid the risk of deformation or breakage as the wood ages.
Sonus faber was able to overcome this limit thanks to modern wood drying methods, use of internal structural ribs fixed with flexible glues, and new CNC methods that allow us to maintain a tighter tolerance compared to that of the past.
After the cabinet’s studies and the drivers’ selection, we focused on defining the perfect tonal balance of the project.
FEATURES
The final step of the long design process of Maxima Amator was, as always,
the “tuning by ear”. Beside the technique, the R&D team relied on the listening experience
and the emotions of Music, because Sonus faber is made of this: passion for knowledge,
appreciation of beauty and commitment to Italian tradition and craftsmanship.
THE VOICE OF SONUS FABER

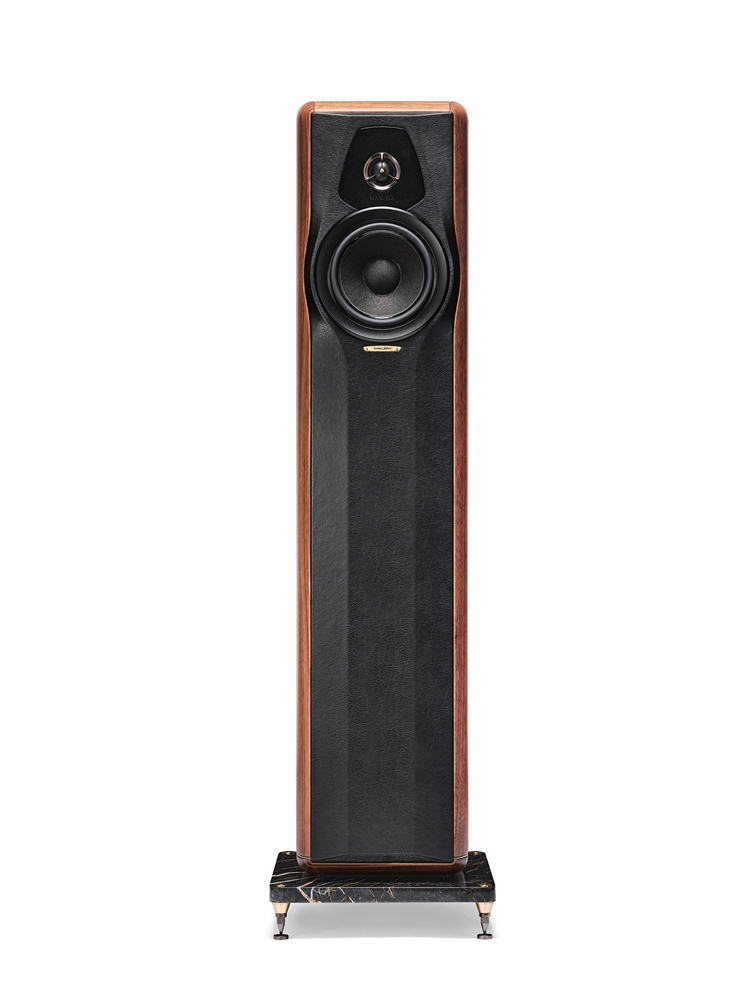

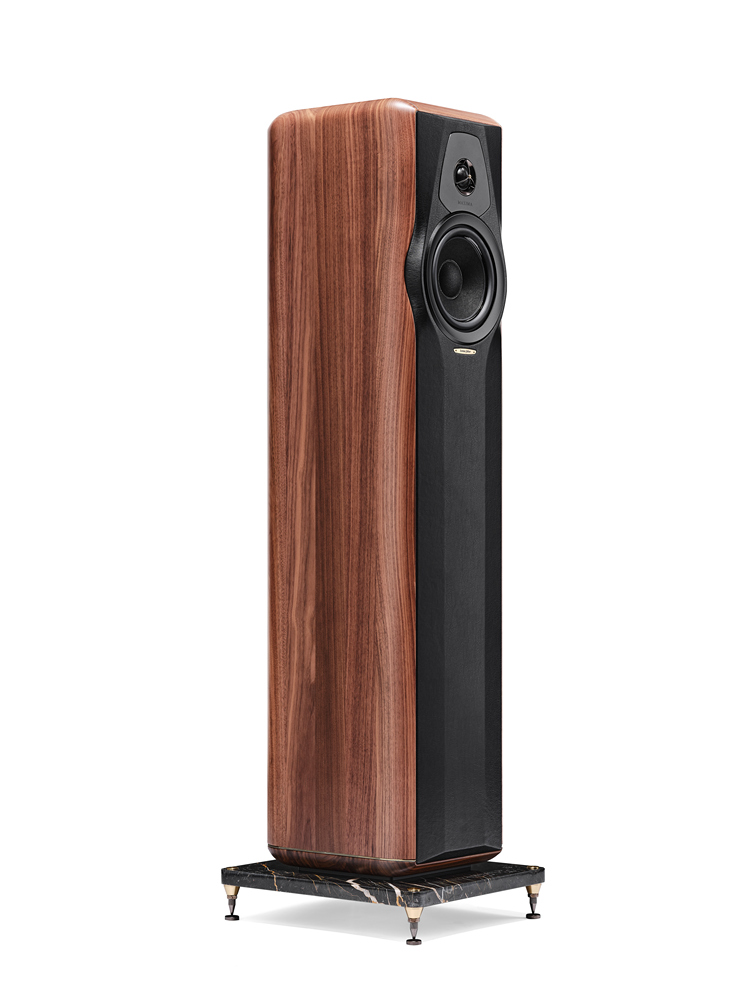

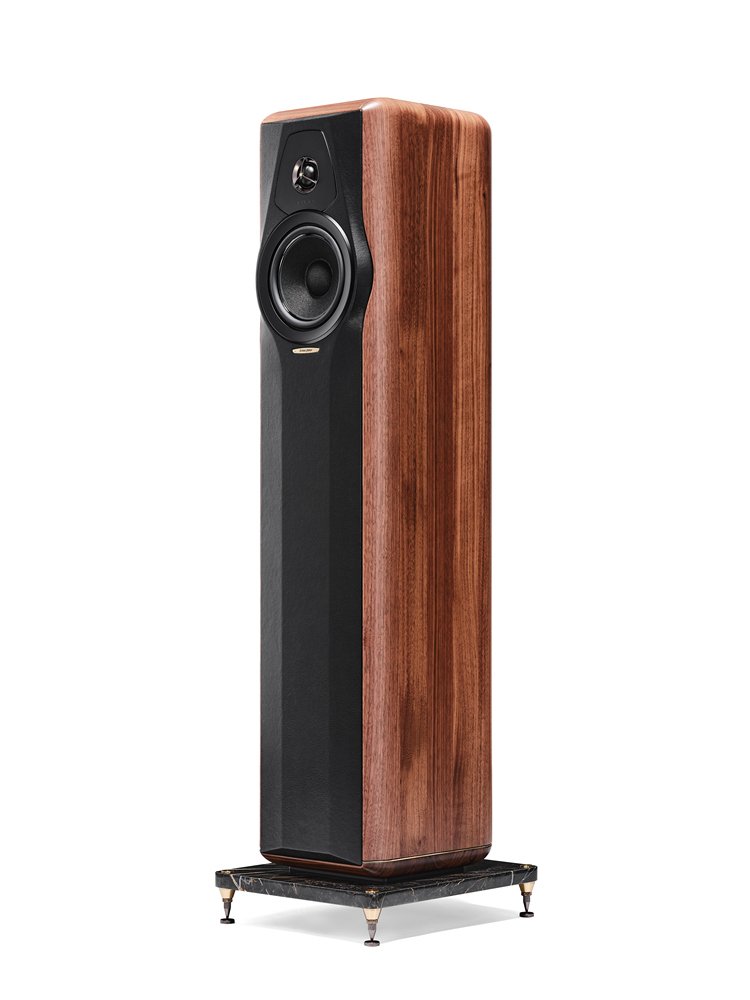

The Maxima Amator speakers are the same as those used for Electa Amator III. Characterized by D.A.D. – Damped Apex Dome™ technology, the 28 mm tweeter features a Neodymium magnetic motor system and is implemented with a solid spruce wood acoustic labyrinth rear chamber. The 180mm Mid-woofer has an air-dried membrane made of cellulose pulp and natural fibers, mounted on the Sonus faber original design die-cast aluminum basket. Thanks to the new crossover network the two interconnected frequencies give life to a homogeneous and fluid sound reproduction.

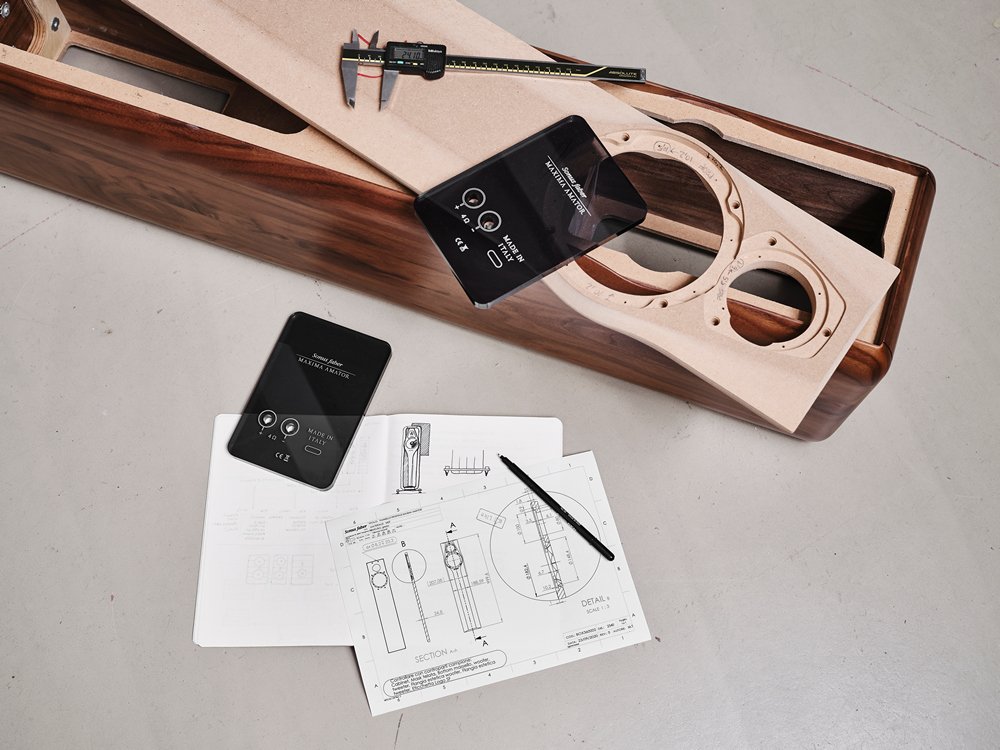

CABINET
The solid wood cabinet is divided into three separate chambers. The first being the acoustic volume, optimized using software node simulators and a brand-new damping material made of three layers: two external layers of recycled carbon fiber and one layer of silica fiber in between.
The second chamber is filled with inert material that increases weight, lowers the center of gravity of the system and increases the stability of the structure as well as minimizing its spurious resonances.
The third chamber is entirely dedicated to hosting the crossover, which is therefore shielded from any possible vibration generated by the speakers in the acoustic chamber.
PRECIOUS MATERIALS

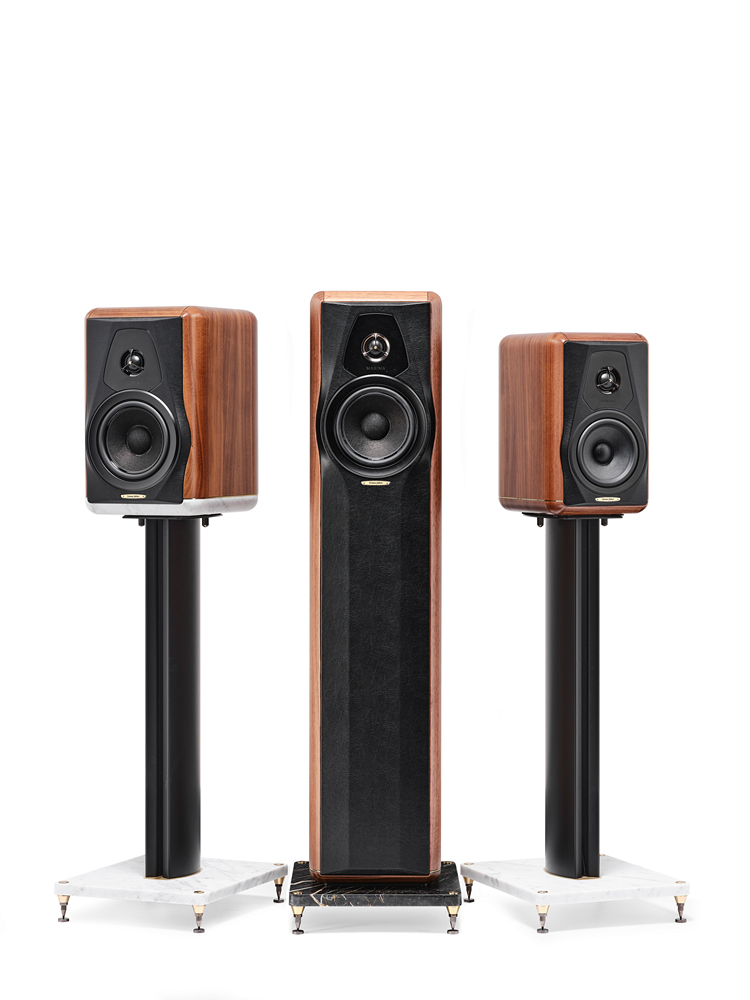

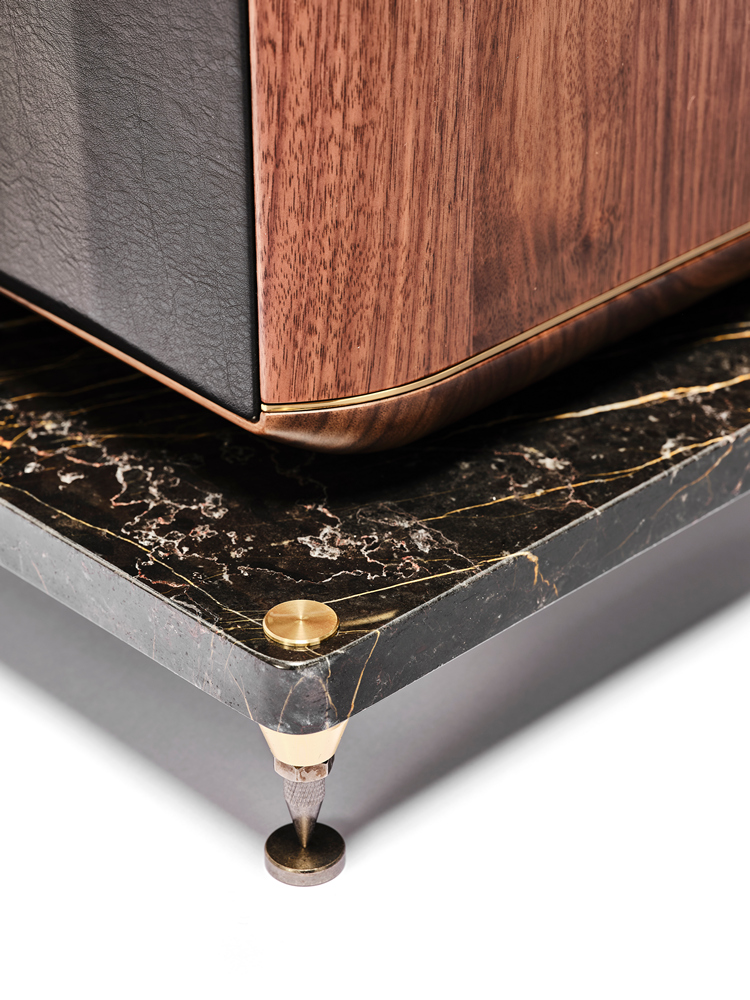

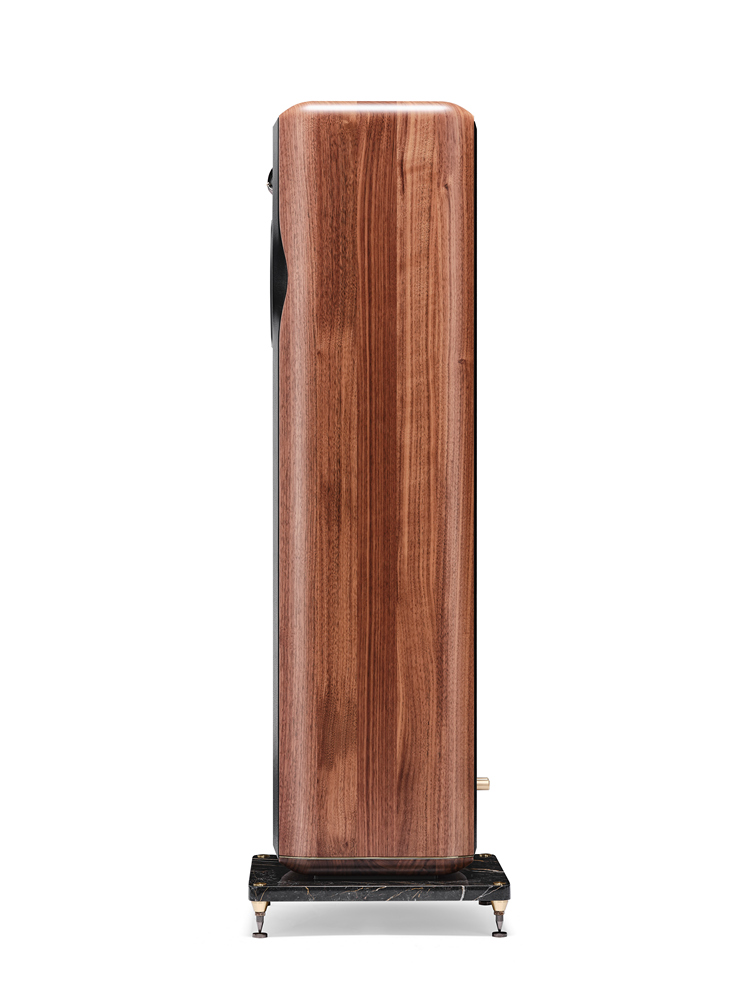

The three models’ cabinets are developed from the harmonious combination of various elements. The undisputed focus of Maxima Amator is the solid walnut wood illuminated by the brass insert and enriched by the hand-applied leather that covers the front and rear panels.

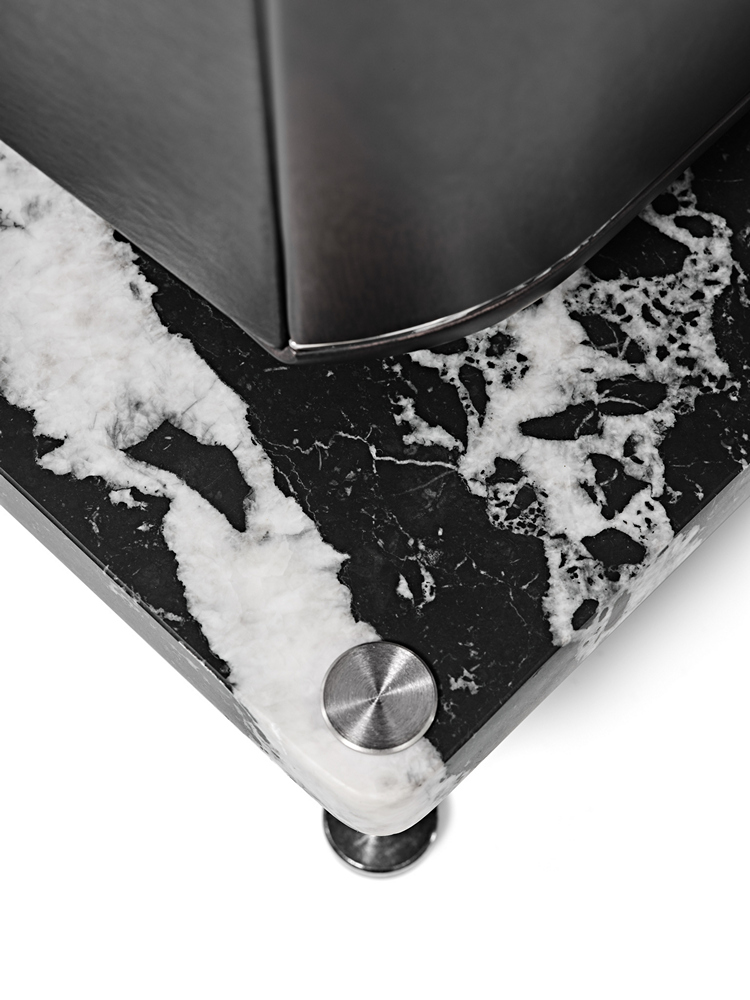

Another constant with Amator models is the natural stone that Sonus faber has traditionally used for bases’ construction to guarantee structural rigidity. This is a clear tribute to the Electa Amator stands, but also to the grandiose Guarneri Homage and Guarneri Memento. Maxima Amator leaves the classic white Carrara marble variant to boast the Port Saint Laurent quality, a darker, warm and shaded variant of marble.

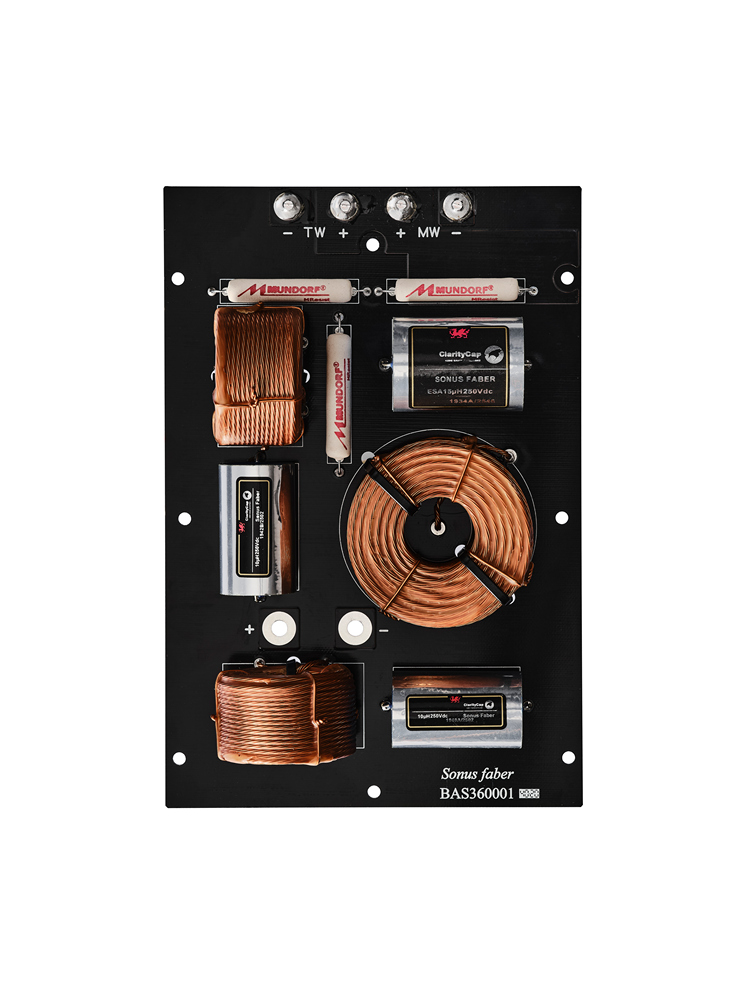

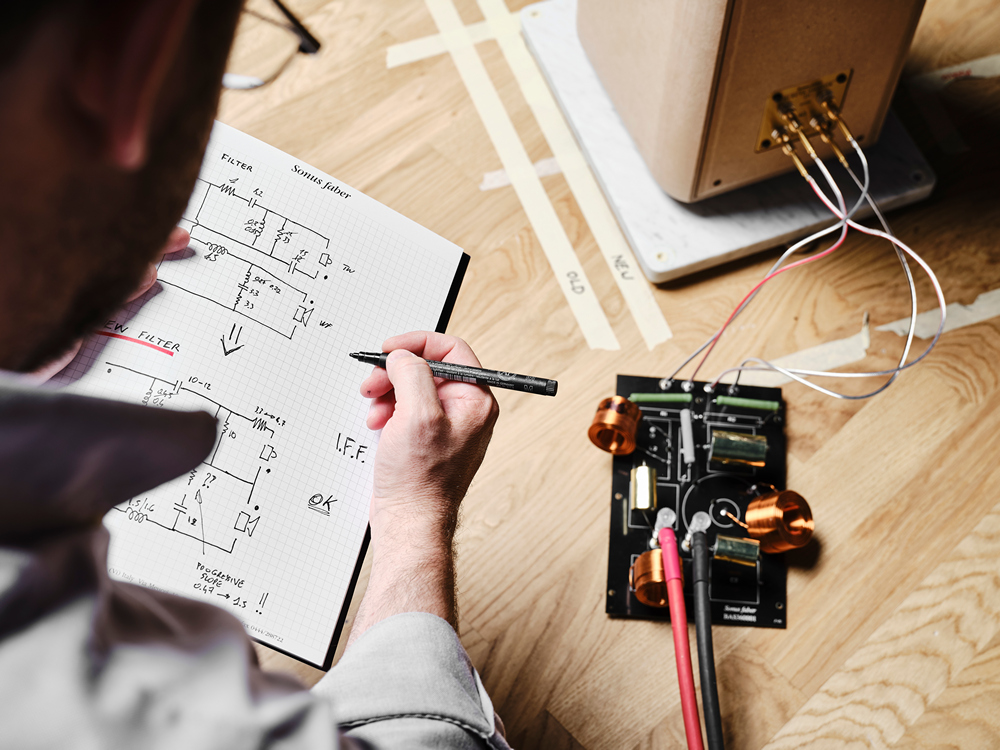

IFF CROSSOVER
The completely new crossover network circuitry design foregoes the classical first order series iteration, to allow the two drivers to work in a maximally interconnected and organic way.
The IFF Crossover “Interactive Fusion Filtering”, reimagines the main principles of the well-known Paracross Topology™ and features non-academic transfer functions based on our accelerated progressive slopes.
Meticulous attention was paid to the choice of components: we chose Litz Wire Coils impregnated in wax to eliminate vibrations, capacitors with highest quality polypropylene base film combined with thick aluminum metallization and anti-inductive resistors.
The final choice is the result of long listening and testing sessions to guide perfect balance.
HEART AND SOUL
We wanted to show to the world the soul of Maxima Amator.

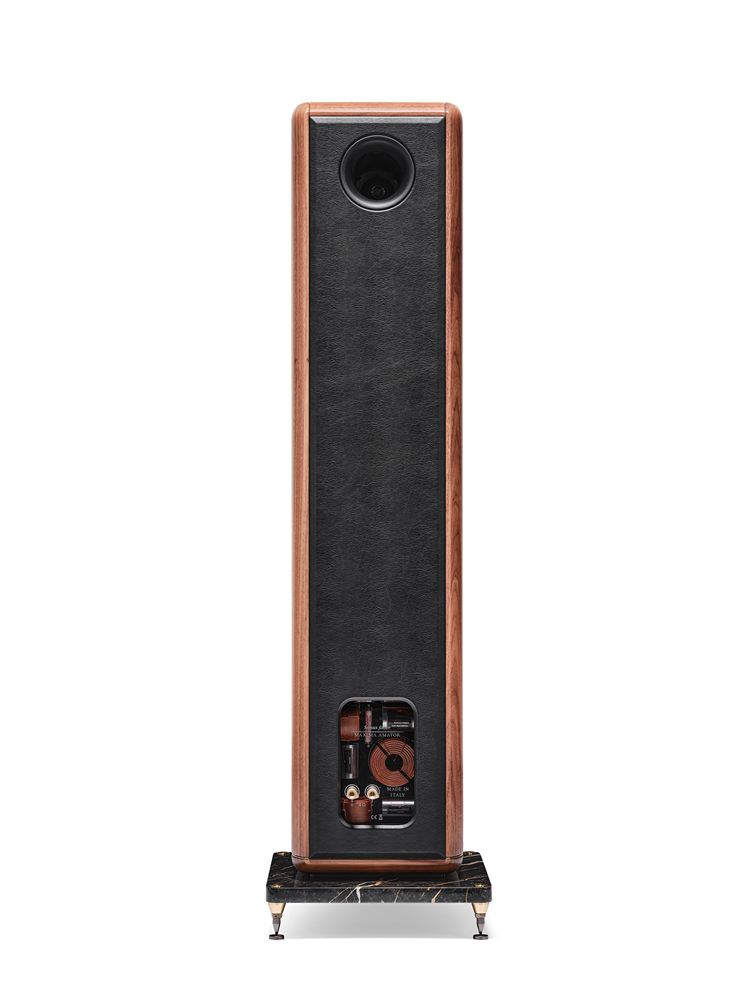

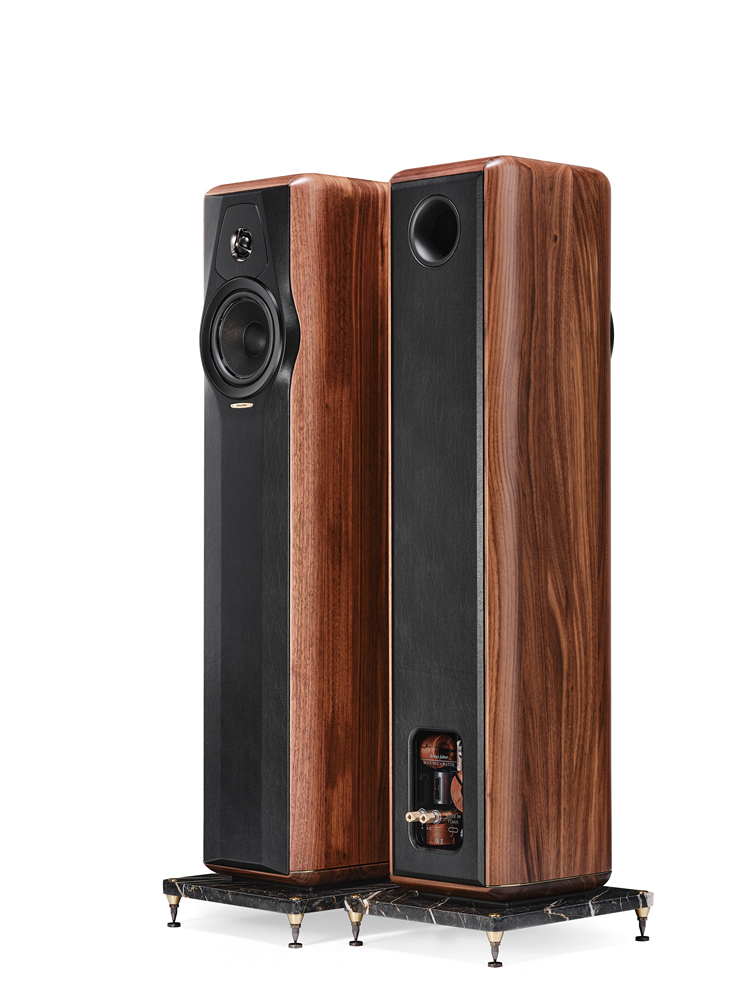

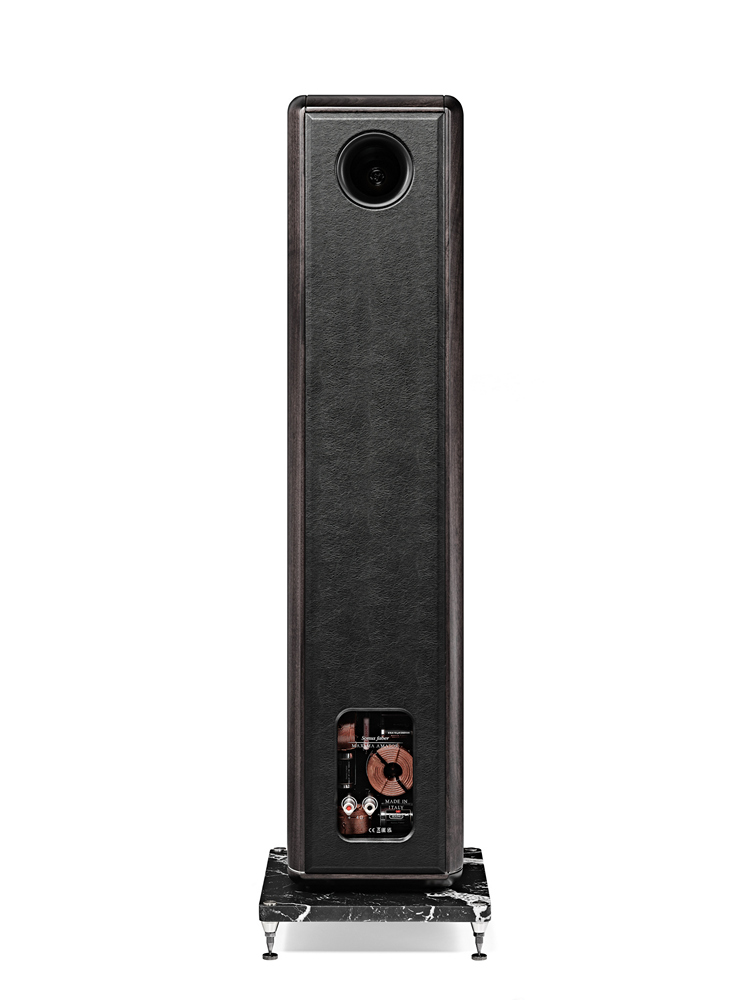

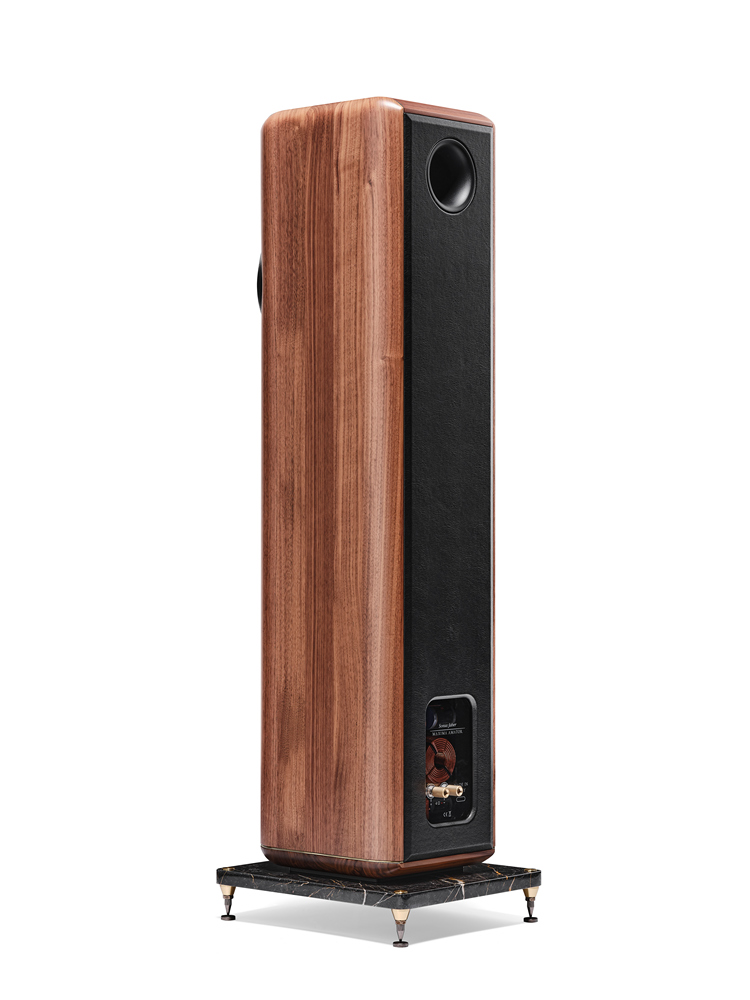

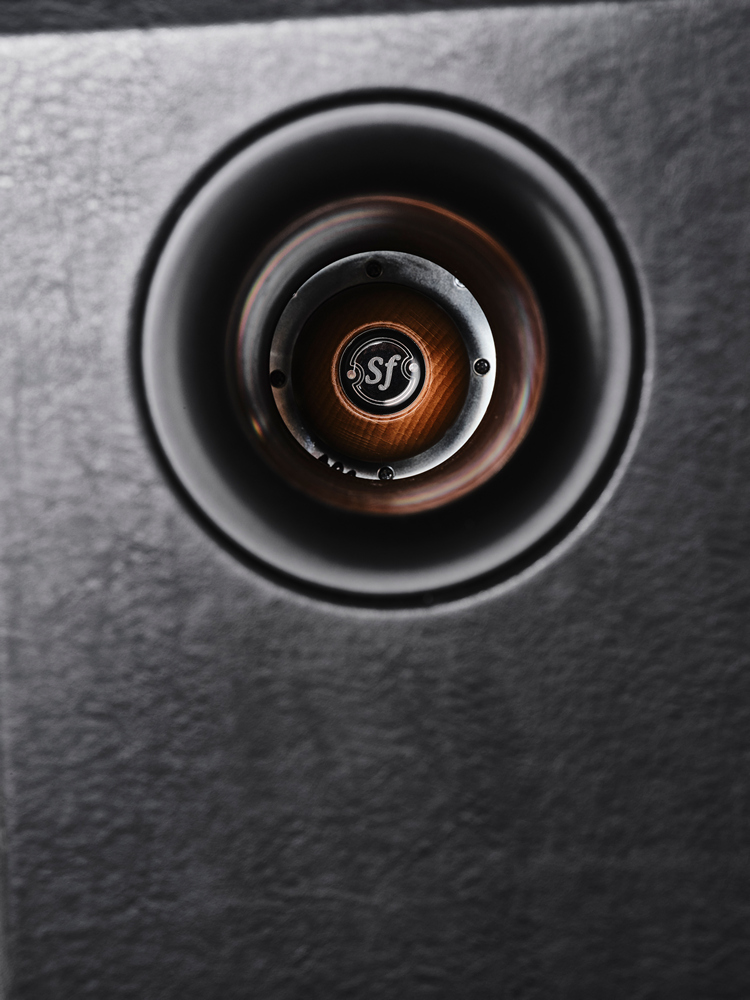

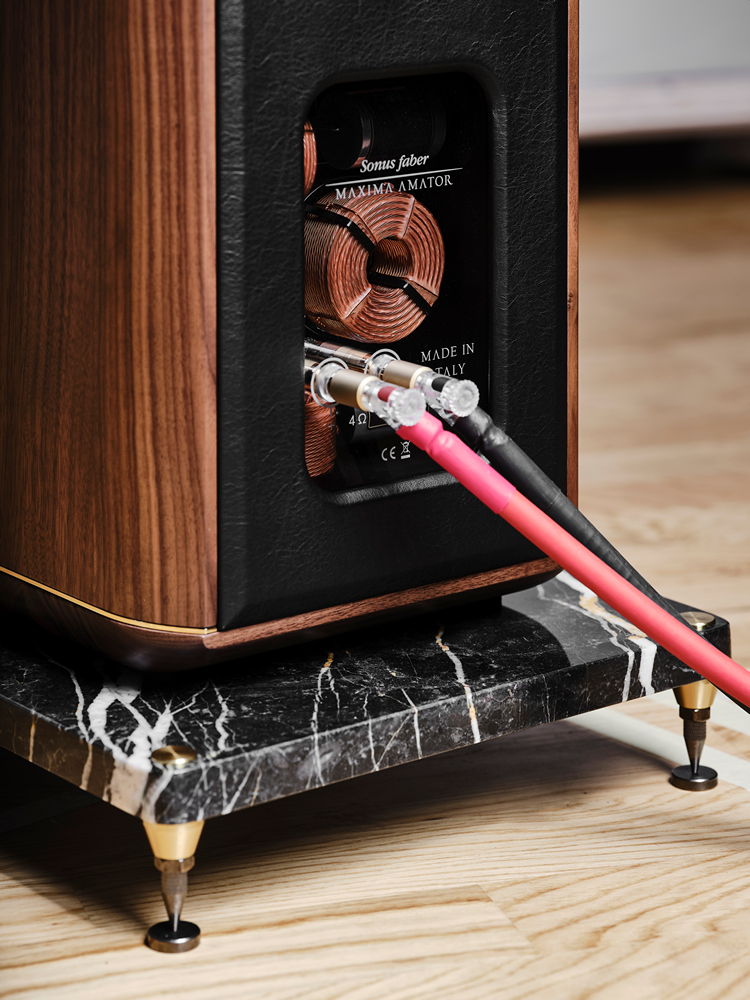

For this reason, as the solid wood rear chamber of the tweeter is visible from the reflex port, the crossover is visible on the back of the speaker behind the terminals.
This design choice encourages the listener to peek inside the product as well as the entire Heritage collection invites to experience the purest essence of the Sonus faber brand and sound.
TECHNICAL SPECIFICATIONS
SYSTEM
2-way floorstanding vented loudspeaker system
LOUDSPEAKERS
Tw: H28 XTR-04 DAD™, Ø 28 mm / 1,1 in
Mw: MW18XTR-04, Ø 180 mm / 7 in
CROSSOVER
2.100 Hz
FREQUENCY RESPONSE
35 Hz – 35.000 Hz
SENSITIVITY
88 dB SPL (2,83V/1 m)
NOMINAL IMPEDANCE
4 ohm
SUGGESTED AMPLIFIER POWER OUTPUT
25 – 125W , without clipping
SPEAKERS DIMENSIONS (HXWXD) & WEIGHT
1120 x 300 x 350 mm
44,1 x 11,8 x 13,8 in
38 Kg each – net weight
83,7 lb each – net weight
מידות
- גובה 112
- רוחב 30
- עומק 35
