HAND-CRAFTING

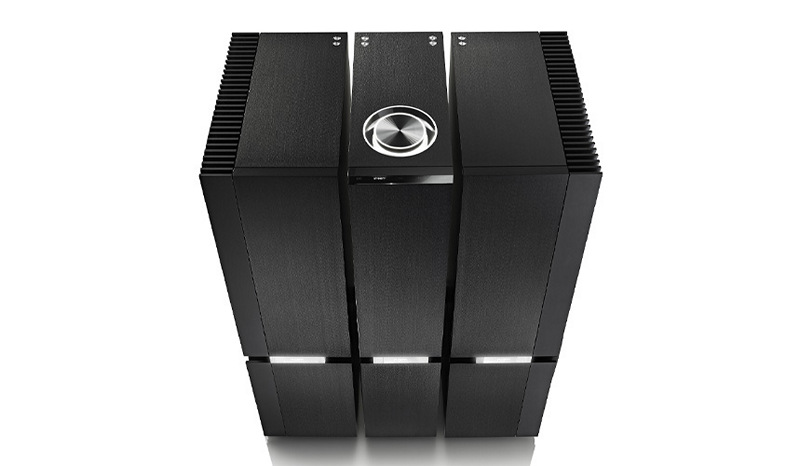

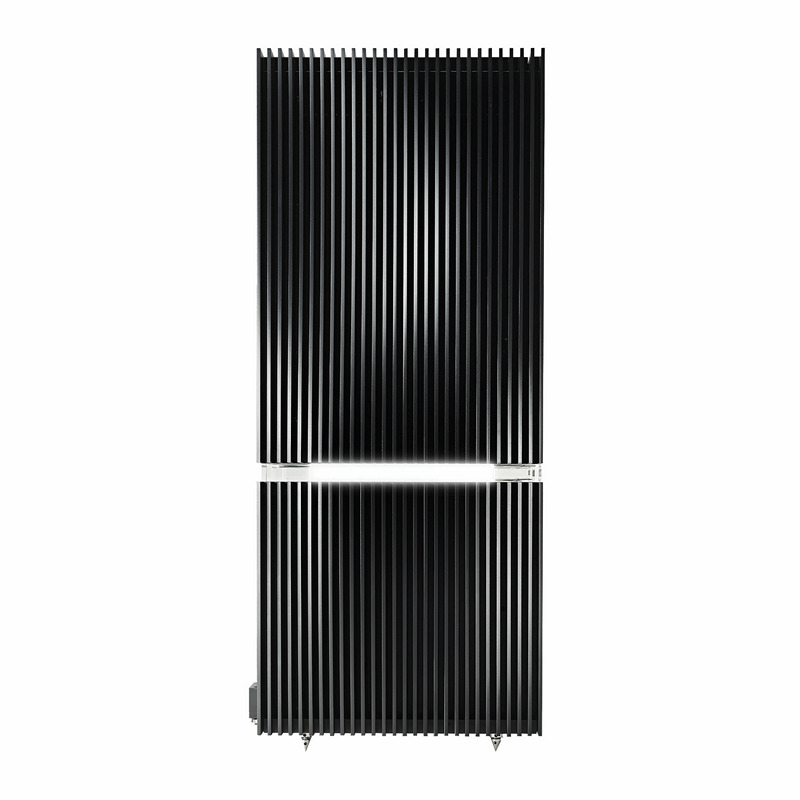

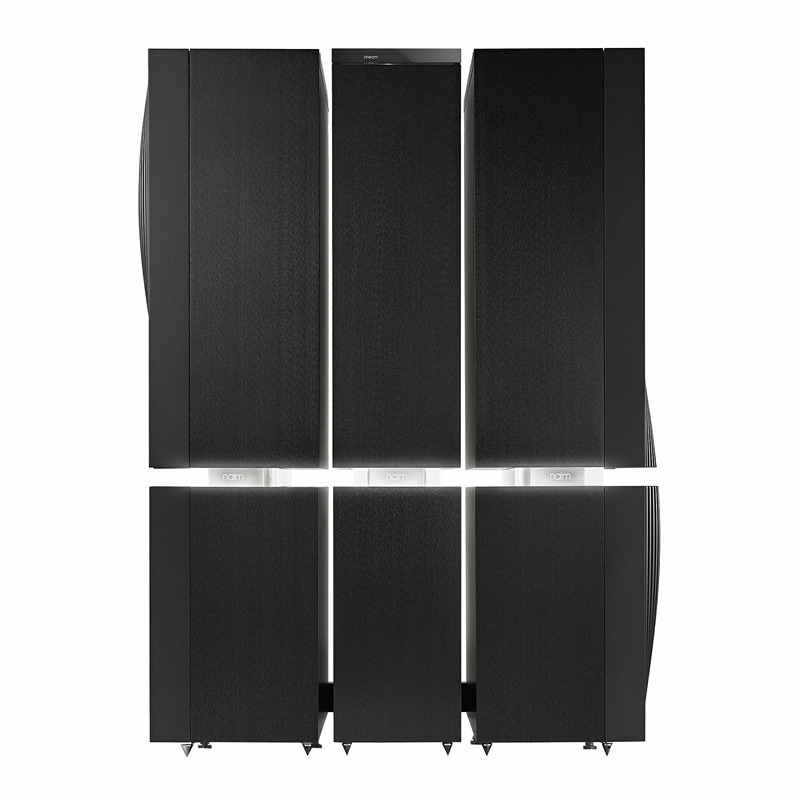

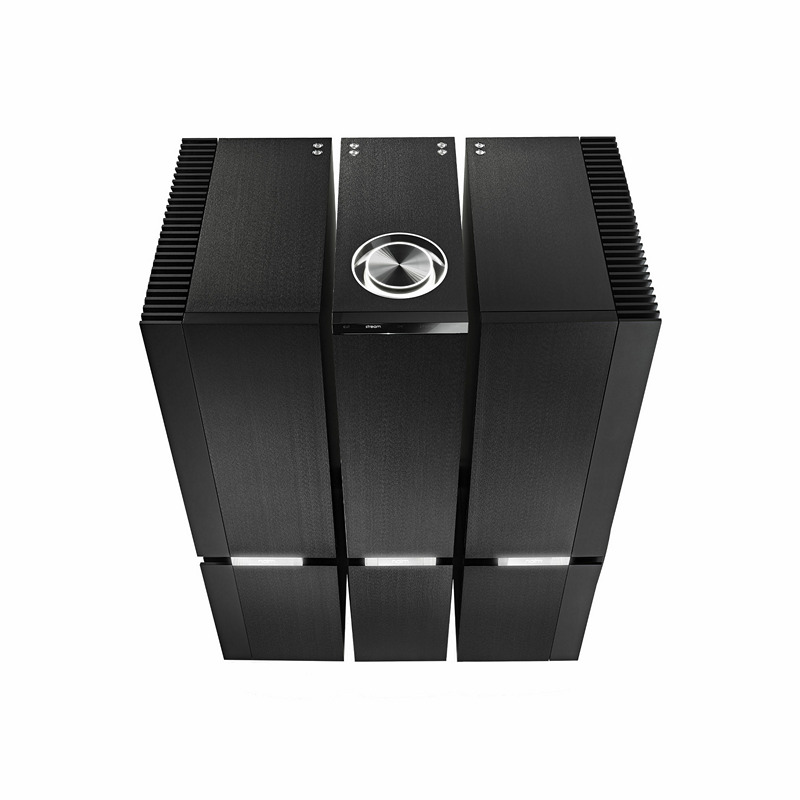

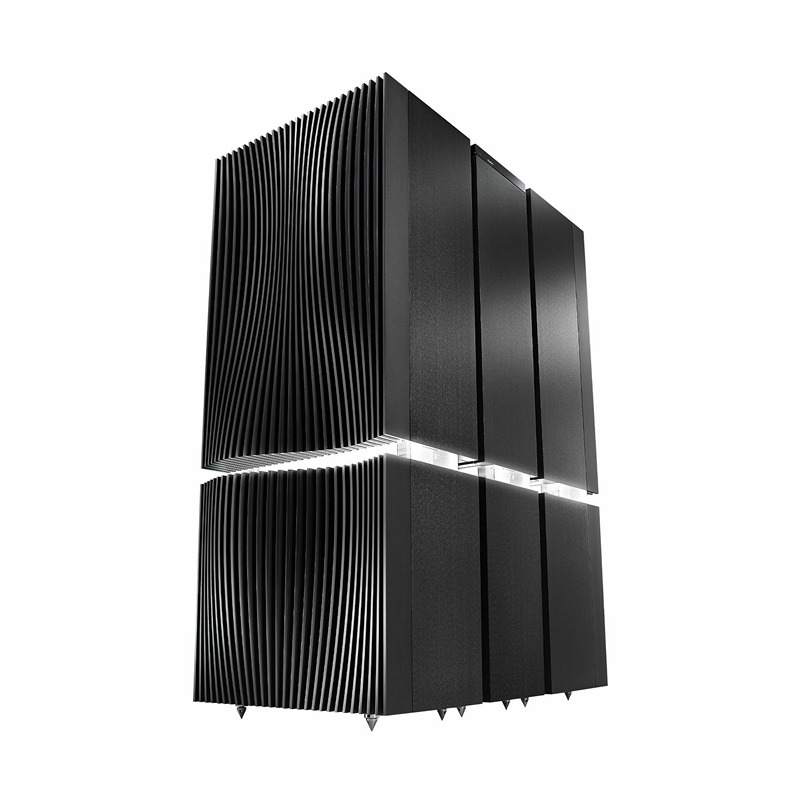

The Statement represents the ultimate expression of the Naim Audio aesthetic. The monolithic structure is impressive, with its stark silhouette balanced by the heat sink's sculptural flow and the beautifully lit volume control and central divide. This duality in the design mirrors how our pursuit of technical brilliance is always rooted in the abstract human experience of music.
ISOLATION
The NAC S1 and NAP S1 share the same fundamental layout. The power supply, which tends to be noisy, is located at the bottom, while the delicate electronics are situated on top. An acrylic centerpiece is used to separate the two, preventing any interaction. The top section of electronics is further divided into internal chambers, which isolate individual stages.
DUAL POWER
The NAP S1 is a new amplifier that features a bridged dual design with zero global feedback. The two stages of the amplifier are physically separated to optimise its performance. The voltage stage is located at the very top of the power amplifier, while the current stage is at the bottom. Each mono power amplifier has a large 4000VA transformer that provides precisely 746W (into 8 ohms) to power the speakers. The Statement is a significant leap forward in technology and design. It has been engineered from the ground up to deliver pure musical performance.
SPECIFICATIONS
Physical Specifications
- Analogue gain :
15dB + 30dB - Analogue inputs :
3x DIN, 3x RCA, 2x XLR (balanced) + XLR balanced - Analogue outputs :
DIN (unbalanced) and XLR (balanced) + Bonne loudspeaker compatible with 4mm connectors and lugs - Headphone outputs : 1 x jack 6,35 mm
Power Supply
- Power consumption in standby mode (deep sleep) : 0.3W
MORE
NAP S1
Audio Inputs
Analogue Input 1 x XLR (each)
Audio Outputs
Audio Outputs
Power Output
Binding posts for spade & 4mm banana
746W into 8 ohms, 1450W into 4 ohms,
9kW burst power into 1 ohm
Physical
Weight
Dimensions (HxWxD)
101kg (each)
940 x 256 x 383mm (each)
NAC S1
Audio Inputs
Analogue Input 3 X DIN, 3 X RCA, 2 X Balanced
Audio Outputs
Audio Outputs 1 X Balanced, 2 X Unbalanced
(4 pin DIN sockets)
Physical
Weight
Dimensions (HxWxD)
61.5kg
940 x 270 x 412mm
(width includes stabiliser)
