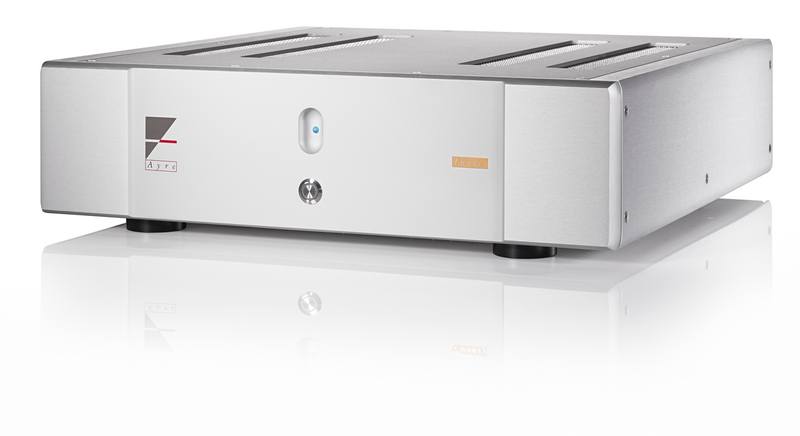

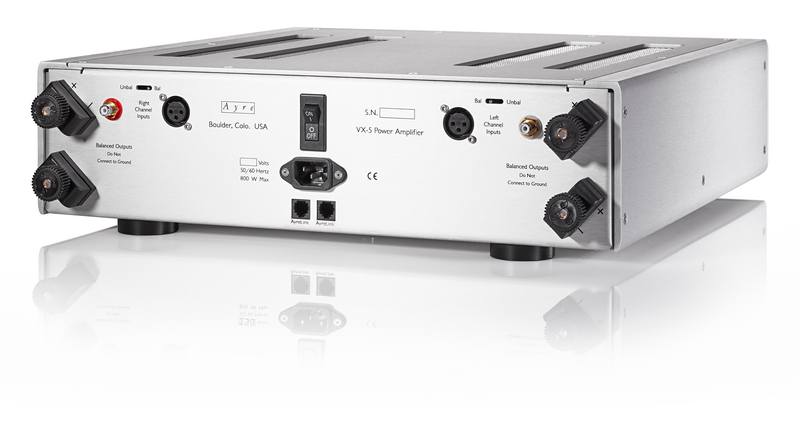

The Ayre VX-5 fully-discrete, fully-balanced, zero-feedback amplifier features our exclusive Equilock circuitry and our Diamond output stage giving it both the power and control for the most demanding musical passages. The VX-5 is every bit the refined and sublime musical masterpiece you have come to expect from an Ayre product. With the addition of our new Diamond output stage this amplifier packs a punch so palpable you will find yourself clinging to the essence of every note. Make a VX-5 the foundation of your music system and redefine your expectation of what an amplifier should do.
Features
Ayre’s new Diamond output stage
Ayre’s exclusive Equilock circuit
Linear analog power supply
zero-feedback and fully-balanced discrete circuitry
High-speed circuit board material
Custom developed audio-grade resistors
Ayre Conditioner power line RFI filter
AyreLink communication system
Specifications
Power Output
175 watts per channel continuous into 8 ohms
350 watts per channel continuous into 4 ohms
Gain
26 dB
Input Impedance
1 MΩ unbalanced inputs
2 MΩ balanced inputs (1 MΩ per phase)
Frequency Response
DC – 250 kHz
Power Consumption
35 watts in low-current consumption mode
325 watts in operating mode, no signal
Dimensions
17.25″ W x 18.75″ D x 4.875″ H
(44cm x 48cm x 12cm)
Weight
52 pounds (24 kg)
