XR50

• Ported 3-Way Bookshelf
• 75 to 300 Watts power rating

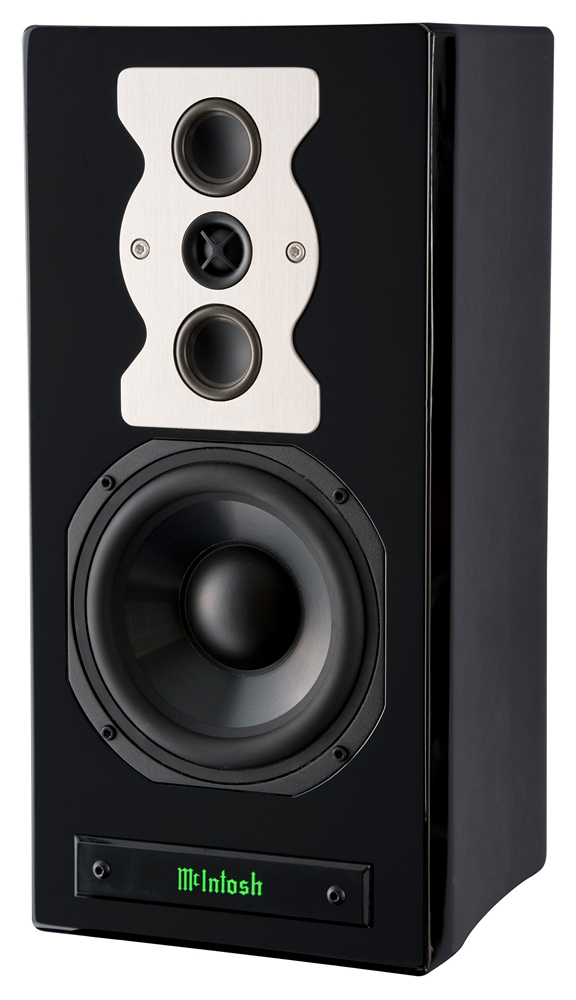

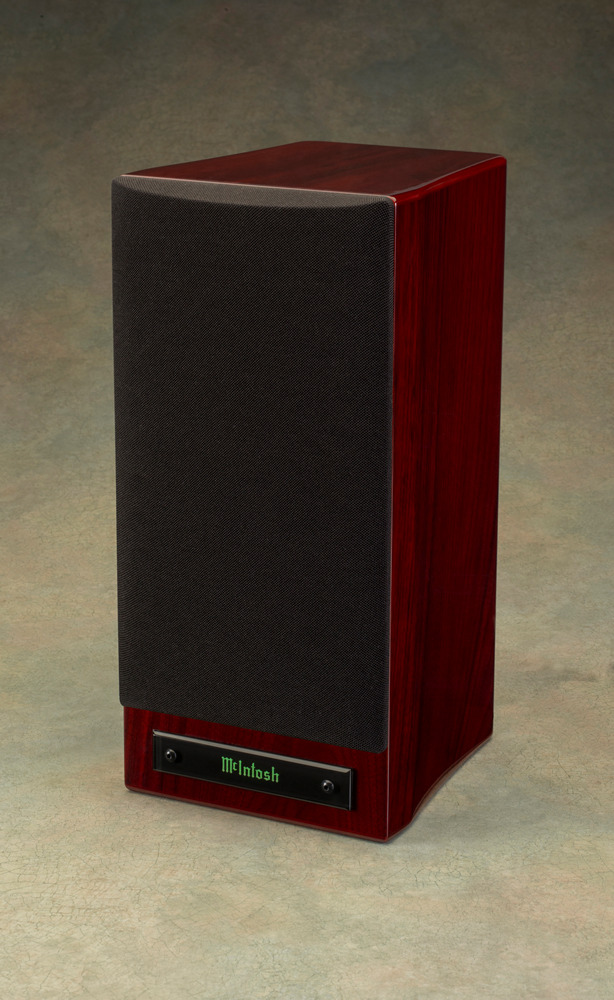

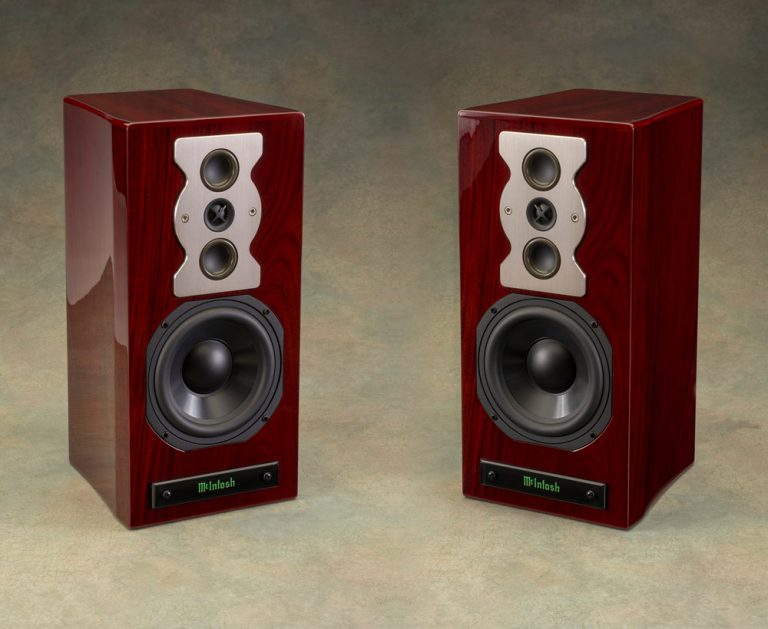

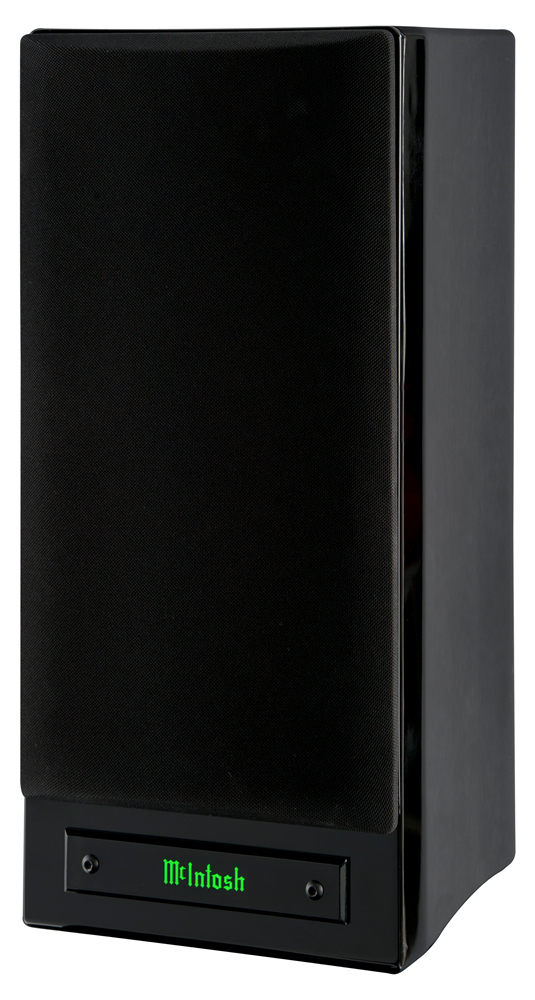

XR50 is a cleverly engineered compact bookshelf speaker that produces the rich, full sound one would expect from much larger speakers. Fine gloss wood finishes are offered in Black and Red Walnut. The magnetically attached grill is acoustically transparent and covered with a neutral black cloth. Unique front panel McIntosh logo may be illuminated when used with McIntosh components.

"Killer compact speakers with power and joy of playing." – Lyd & Bilde

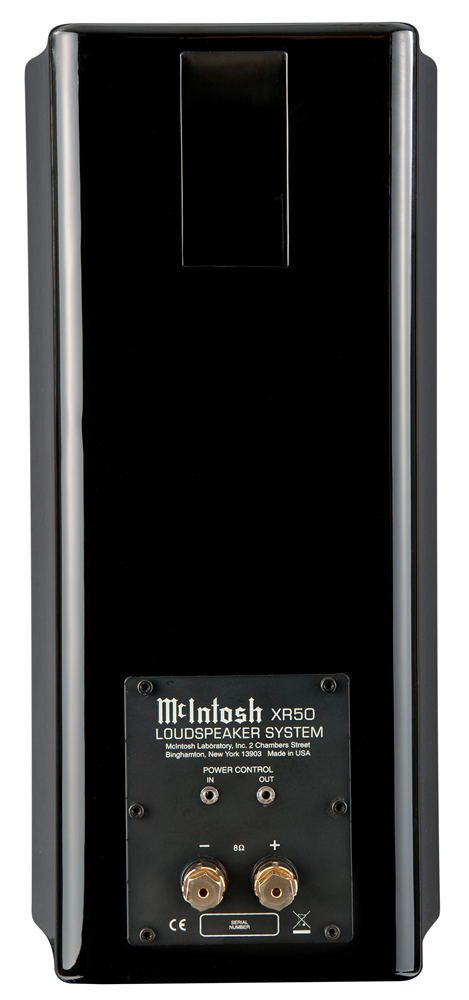

Our patented Solid Cinch^™ speaker binding posts easily but securely attach the speaker cables to prevent them from coming loose and possibly causing a short; they are gold-plated to prevent corrosion and ensure a quality signal is delivered to the XR50.

"Its sound quality belies its diminutive size and on sheer bass output, it’s a tour de force." – audioFi.net



Amplifiers from 75 to 300 Watts are appropriate power for XR50. An additional connection passes on Meter Illumination Control for compatible power amplifiers. When connecting the XR50 3-way bookshelf speaker to an amplifier, it is important to use cables of adequate size so that there is no signal loss. This bookshelf speaker can be used in both stereo music and home theater systems.

ELECTRONIC SPECIFICATIONS

• Impedance Nominal

  8 Ohms

• Power Rating

  75 to 300 Watts

• Frequency Response

  40Hz to 45kHz

• Sound Pressure Level, 2.8V/1m

  81dB

• Crossover

  500Hz, 8kHz

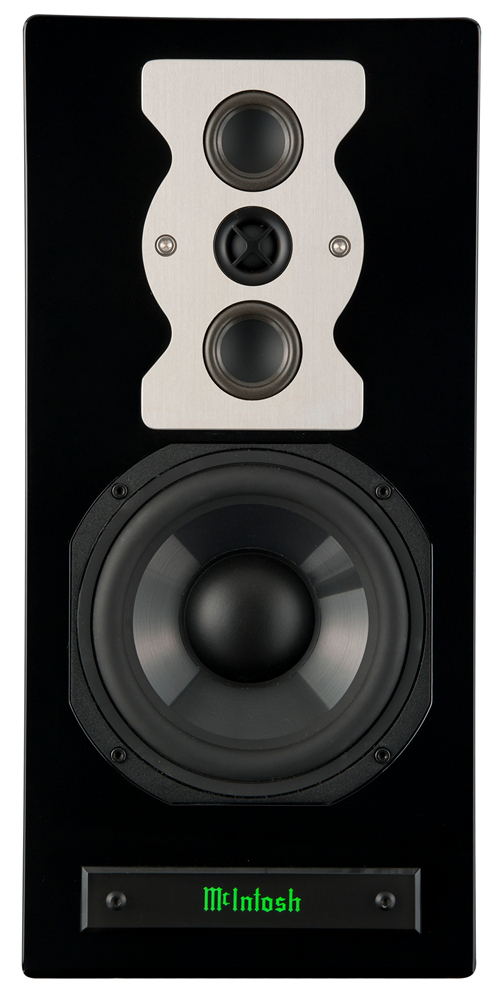

DRIVER SPECIFICATIONS

• Number of Woofers

  1

• Woofer Size

  6"

• Woofer Type

  Cast Frame, LD/HP^®, Poly Cone

• Number of Midranges

  2

• Midrange Size

  2"

• Midrange Type

  Inverted Titanium Dome

• Number of Tweeters

  1

• Tweeter Size

  3/4"

• Tweeter Type

  Titanium Dome

GENERAL SPECIFICATIONS

• System Type

  Ported 3-Way Bookshelf

• Grille

  Black knit cloth, magnetically attached

• Available Finishes

  Red Walnut, Black

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  8" (20.3cm) x 17" (43cm) x 11-3/4" (29.85cm)

• Unit Weight

  19.5 lbs (8.9 kg)

• Shipping Weight

  25 lbs (11 kg)
